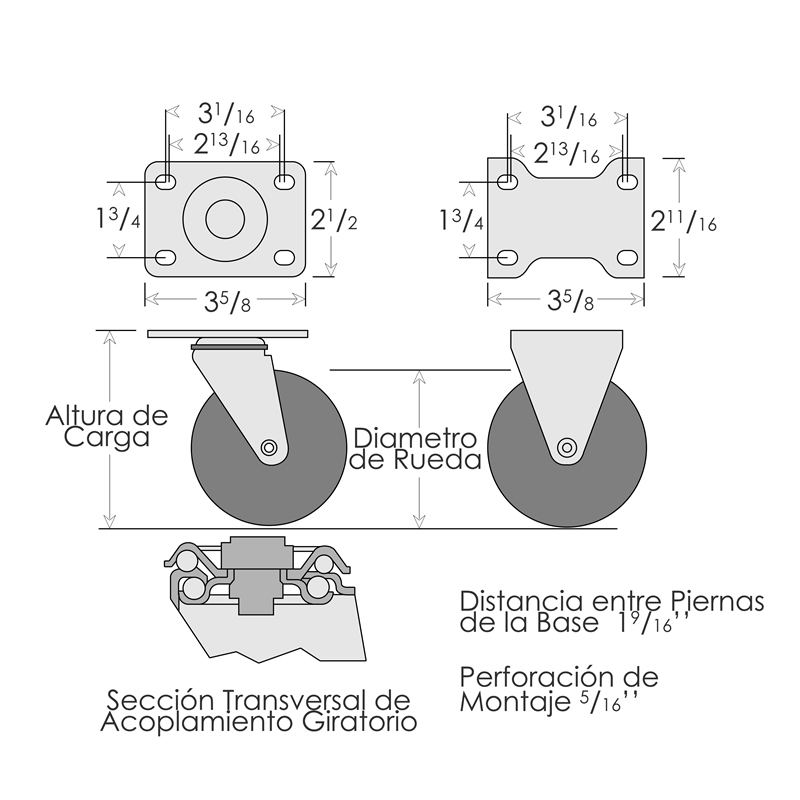

Serie 2 > Rodajas con Placa Giratoria y Fija
Hasta 325 lbs
Estas son las Rodajas mas usuales y son muy prácticas fabricadas en Colson, con Platos fijos y giratorios. Sus aplicaciones son muy variadas, diseñadas para trabajos ligeros institucionales. Para muebles ligeros en Hospitales, Hoteles, Escuelas, Maquiladoras, etcétera. En medidas desde 2-1/2" hasta 5" de diámetro y 1-1/4" de ancho con capacidades desde 125 hasta 325 libras cada una. Disponibles con una amplia variedad de ruedas como Polipropileno, Performa Plana y Tipo Balón, Poliuretano HiTech, Acero, Fenólica, Hule Suave, etcétera. Su doble hilera de balines le agrega fuerza y durabilidad.
Características
- Acabado Galvanizado para una mejor apariencia y durabilidad.
- Doble hilera de baleros en giro para mejor desempeño y resistencia.
- Eje de rueda de 3/8".
- Grasa "Colson 45" multi-temperatura.
Opciones de Freno
- Freno Total - Fija simultáneamente la rueda y el giro de la base. En medidas de 3-1/2", 4" and 5" en los modelos giratorios. Instalable en Campo (Especifique BRK5).
- Freno Lateral -Disponible en todos los modelos giratorios. Instalable en Campo (Especifique BRK1).
Bases
Avaladas por NSF para todos usos.
Pista de Balines protectora de impurezas. (Especifique DC1).
Opciones de tornillos y Tuerca:
- AX1 Tornillo con Grasera
- AX2 Tornillo Solido
- NT1 Tuerca de Seguridad.
Opciones de Ruedas
Guarda-hilos disponibles, no aplicables con frenos (Especifique TG1 para metal, TG2 para plástico).
Serie 2 > Rodajas con Placa Giratoria y Fija > Hasta 325 lbs
No. de Modelo | Descripcion de Rodaja | Diametro de Rueda | Ancho de Rueda | Capacidad por Rodaja | Rueda | Balero | Altura de Carga | Radio de Giro | Peso |
2.02256.445 COND | Serie 2 : Top Plate (Standard) Swivel | 2-1/2 | 1-1/4 | 125 | Performa Rubber (Conductive Flat) | Ball | 3-7/8 | 2-13/32 | 1-5/8 |
2.02256.441 | Serie 2 : Top Plate (Standard) Swivel | 2-1/2 | 1-1/4 | 140 | Performa Rubber (Flat tread) | Delrin | 3-7/8 | 2-13/32 | 1-5/8 |
2.02256.445 | Serie 2 : Top Plate (Standard) Swivel | 2-1/2 | 1-1/4 | 140 | Performa Rubber (Flat tread) | Ball | 3-7/8 | 2-13/32 | 1-5/8 |
2.02256.53 | Serie 2 : Top Plate (Standard) Swivel | 2-1/2 | 1-1/4 | 200 | Polyolefin | Delrin | 3-7/8 | 2-13/32 | 1-5/8 |
2.02256.55 | Serie 2 : Top Plate (Standard) Swivel | 2-1/2 | 1-1/4 | 200 | Polyolefin | Ball | 3-7/8 | 2-13/32 | 1-5/8 |
2.02256.91 | Serie 2 : Top Plate (Standard) Swivel | 2-1/2 | 1-1/4 | 250 | Polyurethane HI-TECH | Delrin | 3-7/8 | 2-13/32 | 1-5/8 |
2.02256.95 | Serie 2 : Top Plate (Standard) Swivel | 2-1/2 | 1-1/4 | 250 | Polyurethane HI-TECH | Ball | 3-7/8 | 2-13/32 | 1-5/8 |
2.02256.12 | Serie 2 : Top Plate (Standard) Swivel | 2-1/2 | 1-1/4 | 300 | Cast Iron | Sleeve | 3-7/8 | 2-13/32 | 2 |
2.02256.319 | Serie 2 : Top Plate (Standard) Swivel | 2-1/2 | 1-7/16 | 300 | Phenolic | Roller | 3-7/8 | 2-13/32 | 1-5/8 |
2.03356.42 | Serie 2 : Top Plate (Standard) Swivel | 3 | 1-1/4 | 150 | Rubber HI-TECH | Plain | 4-1/8 | 2-21/32 | 2 |
2.03356.92 | Serie 2 : Top Plate (Standard) Swivel | 3 | 1-1/4 | 200 | Polyurethane HI-TECH | Plain | 4-1/8 | 2-21/32 | 2 |
2.03356.52 | Serie 2 : Top Plate (Standard) Swivel | 3 | 1-1/4 | 200 | Polyolefin | Delrin | 4-1/8 | 2-21/32 | 2 |
2.03356.309 | Serie 2 : Top Plate (Standard) Swivel | 3 | 1-15/32 | 300 | Phenolic | Roller | 4-1/8 | 2-21/32 | 2-3/4 |
2.03256.445 COND | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-1/4 | 225 | Performa Rubber (Conductive Flat) | Ball | 4-11/16 | 2-29/32 | 2 |
2.03256.53 | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-1/4 | 230 | Polyolefin | Delrin | 4-11/16 | 2-29/32 | 1-7/8 |
2.03256.55 | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-1/4 | 230 | Polyolefin | Ball | 4-11/16 | 2-29/32 | 1-7/8 |
2.03256.441 | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-1/4 | 250 | Performa Rubber (Flat tread) | Delrin | 4-11/16 | 2-29/32 | 2 |
2.03256.445 | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-1/4 | 250 | Performa Rubber (Flat tread) | Ball | 4-11/16 | 2-29/32 | 2 |
2.03256.91 | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-1/4 | 250 | Polyurethane HI-TECH | Delrin | 4-11/16 | 2-29/32 | 1-7/8 |
2.03256.95 | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-1/4 | 250 | Polyurethane HI-TECH | Ball | 4-11/16 | 2-29/32 | 1-7/8 |
2.03256.52 HT | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-1/4 | 300 | Thermo | Plain | 4-11/16 | 2-29/32 | 2-7/8 |
2.03256.12 | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-1/4 | 300 | Cast Iron | Sleeve | 4-11/16 | 2-29/32 | 3 |
2.03256.565 COND | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-5/16 | 210 | Performa Rubber (Conductive Round) | Ball | 4-11/16 | 2-29/32 | 2-1/4 |
2.03256.561 | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-5/16 | 210 | Performa Rubber (Round tread) | Delrin | 4-11/16 | 2-29/32 | 2-1/4 |
2.03256.565 | Serie 2 : Top Plate (Standard) Swivel | 3-1/2 | 1-5/16 | 210 | Performa Rubber (Round tread) | Ball | 4-11/16 | 2-29/32 | 2-1/4 |
2.04256.613 H | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 250 | ThermoTech | Teflon | 5-1/8 | 3-7/32 | 3 |
2.04256.445 COND | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 250 | Performa Rubber(Conductive Flat) | Ball | 5-1/8 | 3-7/32 | 2-1/4 |
2.04256.53 | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 275 | Polyolefin | Delrin | 5-1/8 | 3-7/32 | 2-1/8 |
2.04256.55 | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 275 | Polyolefin | Ball | 5-1/8 | 3-7/32 | 2-1/8 |
2.04256.91 | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 275 | Polyurethane HI-TECH | Delrin | 5-1/8 | 3-7/32 | 2-1/8 |
2.04256.95 | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 275 | Polyurethane HI-TECH | Ball | 5-1/8 | 3-7/32 | 2-1/8 |
2.04256.441 | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 300 | Performa Rubber (Flat tread) | Delrin | 5-1/8 | 3-7/32 | 2-1/4 |
2.04256.445 | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 300 | Performa Rubber (Flat tread) | Ball | 5-1/8 | 3-7/32 | 2-1/4 |
2.04256.52 HT | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 300 | Thermo | Plain | 5-1/8 | 3-7/32 | 3-1/8 |
2.04256.12 | Serie 2 : Top Plate (Standard) Swivel | 4 | 1-1/4 | 300 | Cast Iron | Sleeve | 5-1/8 | 3-7/32 | 3-3/8 |
2.05256.613 H | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 250 | ThermoTech | Teflon | 6-3/16 | 3-13/16 | 3 |
2.05256.445 COND | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 250 | Performa Rubber (Conductive Flat) | Ball | 6-3/16 | 3-13/16 | 3 |
2.05256.565 | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 250 | Performa Rubber (Round tread) | Ball | 6-3/16 | 3-13/16 | 3 |
2.05256.53 | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 300 | Polyolefin | Delrin | 6-3/16 | 3-13/16 | 2-1/2 |
2.05256.55 | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 300 | Polyolefin | Ball | 6-3/16 | 3-13/16 | 2-1/2 |
2.05256.91 | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 300 | Polyurethane HI-TECH | Delrin | 6-3/16 | 3-13/16 | 2-1/2 |
2.05256.95 | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 300 | Polyurethane HI-TECH | Ball | 6-3/16 | 3-13/16 | 2-1/2 |
2.05256.12 | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 300 | Cast Iron | Sleeve | 6-3/16 | 3-13/16 | 3-3/4 |
2.05256.441 | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 325 | Performa Rubber (Flat tread) | Delrin | 6-3/16 | 3-13/16 | 2-3/4 |
2.05256.445 | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 325 | Performa Rubber (Flat tread) | Ball | 6-3/16 | 3-13/16 | 2-3/4 |
2.05256.52 HT | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-1/4 | 325 | Thermo | Plain | 6-3/16 | 3-13/16 | 3-1/2 |
2.05256.565 COND | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-5/16 | 250 | Performa Rubber (Conductive Round) | Ball | 6-3/16 | 3-13/16 | 3 |
2.05256.561 | Serie 2 : Top Plate (Standard) Swivel | 5 | 1-5/16 | 250 | Performa Rubber (Round tread) | Delrin | 6-3/16 | 3-13/16 | 3 |
2.02208.445 COND | Serie 2 : Top Plate (Standard) Rigid | 2-1/2 | 1-1/4 | 125 | Performa Rubber (Conductive Flat) | Ball | 3-7/8 | 2-13/32 | 1-5/8 |
2.02208.441 | Serie 2 : Top Plate (Standard) Rigid | 2-1/2 | 1-1/4 | 140 | Performa Rubber (Flat tread) | Delrin | 3-7/8 | 2-13/32 | 1-5/8 |
2.02208.445 | Serie 2 : Top Plate (Standard) Rigid | 2-1/2 | 1-1/4 | 140 | Performa Rubber (Flat tread) | Ball | 3-7/8 | 2-13/32 | 1-5/8 |
2.02208.53 | Serie 2 : Top Plate (Standard) Rigid | 2-1/2 | 1-1/4 | 200 | Polyolefin | Delrin | 3-7/8 | 2-13/32 | 1-5/8 |
2.02208.55 | Serie 2 : Top Plate (Standard) Rigid | 2-1/2 | 1-1/4 | 200 | Polyolefin | Ball | 3-7/8 | 2-13/32 | 1-5/8 |
2.02208.91 | Serie 2 : Top Plate (Standard) Rigid | 2-1/2 | 1-1/4 | 250 | Polyurethane HI-TECH | Delrin | 3-7/8 | 2-13/32 | 1-5/8 |
2.02208.95 | Serie 2 : Top Plate (Standard) Rigid | 2-1/2 | 1-1/4 | 250 | Polyurethane HI-TECH | Ball | 3-7/8 | 2-13/32 | 1-5/8 |
2.02208.12 | Serie 2 : Top Plate (Standard) Rigid | 2-1/2 | 1-1/4 | 300 | Cast Iron | Sleeve | 3-7/8 | 2-13/32 | 2 |
2.02208.319 | Serie 2 : Top Plate (Standard) Rigid | 2-1/2 | 1-7/16 | 300 | Phenolic | Roller | 3-7/8 | 2-13/32 | 1-5/8 |
2.03308.42 | Serie 2 : Top Plate (Standard) Rigid | 3 | 1-1/4 | 150 | Rubber HI-TECH | Plain | 4-1/8 | 2-21/32 | 2 |
2.03308.92 | Serie 2 : Top Plate (Standard) Rigid | 3 | 1-1/4 | 200 | Polyurethane HI-TECH | Plain | 4-1/8 | 2-21/32 | 2 |
2.03308.52 | Serie 2 : Top Plate (Standard) Rigid | 3 | 1-1/4 | 200 | Polyolefin | Delrin | 4-1/8 | 2-21/32 | 2 |
2.03308.309 | Serie 2 : Top Plate (Standard) Rigid | 3 | 1-15/32 | 300 | Phenolic | Roller | 4-1/8 | 2-21/32 | 2-3/4 |
2.03208.445 COND | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-1/4 | 225 | Performa Rubber (Conductive Flat) | Ball | 4-11/16 | 2-29/32 | 2 |
2.03208.53 | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-1/4 | 230 | Polyolefin | Delrin | 4-11/16 | 2-29/32 | 1-7/8 |
2.03208.55 | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-1/4 | 230 | Polyolefin | Ball | 4-11/16 | 2-29/32 | 1-7/8 |
2.03208.441 | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-1/4 | 250 | Performa Rubber (Flat tread) | Delrin | 4-11/16 | 2-29/32 | 2 |
2.03208.445 | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-1/4 | 250 | Performa Rubber (Flat tread) | Ball | 4-11/16 | 2-29/32 | 2 |
2.03208.91 | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-1/4 | 250 | Polyurethane HI-TECH | Delrin | 4-11/16 | 2-29/32 | 1-7/8 |
2.03208.95 | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-1/4 | 250 | Polyurethane HI-TECH | Ball | 4-11/16 | 2-29/32 | 1-7/8 |
2.03208.52 HT | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-1/4 | 300 | Thermo | Plain | 4-11/16 | 2-29/32 | 2-7/8 |
2.03208.12 | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-1/4 | 300 | Cast Iron | Sleeve | 4-11/16 | 2-29/32 | 3 |
2.03208.565 COND | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-5/16 | 210 | Performa Rubber (Conductive Round) | Ball | 4-11/16 | 2-29/32 | 2-1/4 |
2.03208.561 | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-5/16 | 210 | Performa Rubber (Round tread) | Delrin | 4-11/16 | 2-29/32 | 2-1/4 |
2.03208.565 | Serie 2 : Top Plate (Standard) Rigid | 3-1/2 | 1-5/16 | 210 | Performa Rubber (Round tread) | Ball | 4-11/16 | 2-29/32 | 2-1/4 |
2.04208.613 H | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 250 | ThermoTech | Teflon | 5-1/8 | 3-7/32 | 3 |
2.04208.445 COND | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 250 | Performa Rubber (Conductive Flat) | Ball | 5-1/8 | 3-7/32 | 2-1/4 |
2.04208.53 | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 275 | Polyolefin | Delrin | 5-1/8 | 3-7/32 | 2-1/8 |
2.04208.55 | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 275 | Polyolefin | Ball | 5-1/8 | 3-7/32 | 2-1/8 |
2.04208.91 | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 275 | Polyurethane HI-TECH | Delrin | 5-1/8 | 3-7/32 | 2-1/8 |
2.04208.95 | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 275 | Polyurethane HI-TECH | Ball | 5-1/8 | 3-7/32 | 2-1/8 |
2.04208.441 | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 300 | Performa Rubber (Flat tread) | Delrin | 5-1/8 | 3-7/32 | 2-1/4 |
2.04208.445 | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 300 | Performa Rubber (Flat tread) | Ball | 5-1/8 | 3-7/32 | 2-1/4 |
2.04208.52 HT | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 300 | Thermo | Plain | 5-1/8 | 3-7/32 | 3-1/8 |
2.04208.12 | Serie 2 : Top Plate (Standard) Rigid | 4 | 1-1/4 | 300 | Cast Iron | Sleeve | 5-1/8 | 3-7/32 | 3-3/8 |
2.05208.613 H | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 250 | ThermoTech | Teflon | 6-3/16 | 3-13/16 | 3 |
2.05208.445 COND | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 250 | Performa Rubber (Conductive Flat) | Ball | 6-3/16 | 3-13/16 | 3 |
2.05208.565 | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 250 | Performa Rubber (Round tread) | Ball | 6-3/16 | 3-13/16 | 3 |
2.05208.53 | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 300 | Polyolefin | Delrin | 6-3/16 | 3-13/16 | 2-1/2 |
2.05208.55 | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 300 | Polyolefin | Ball | 6-3/16 | 3-13/16 | 2-1/2 |
2.05208.91 | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 300 | Polyurethane HI-TECH | Delrin | 6-3/16 | 3-13/16 | 2-1/2 |
2.05208.95 | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 300 | Polyurethane HI-TECH | Ball | 6-3/16 | 3-13/16 | 2-1/2 |
2.05208.12 | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 300 | Cast Iron | Sleeve | 6-3/16 | 3-13/16 | 3-3/4 |
2.05208.441 | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 325 | Performa Rubber (Flat tread) | Delrin | 6-3/16 | 3-13/16 | 2-3/4 |
2.05208.445 | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 325 | Performa Rubber (Flat tread) | Ball | 6-3/16 | 3-13/16 | 2-3/4 |
2.05208.52 HT | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-1/4 | 325 | Thermo | Plain | 6-3/16 | 3-13/16 | 3-1/2 |
2.05208.565 COND | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-5/16 | 250 | Performa Rubber (Conductive Round) | Ball | 6-3/16 | 3-13/16 | 3 |
2.05208.561 | Serie 2 : Top Plate (Standard) Rigid | 5 | 1-5/16 | 250 | Performa Rubber (Round tread) | Delrin | 6-3/16 | 3-13/16 | 3 |
